Modern electric vehicle (EV) architectures demand high power density and reliable thermal management to ensure efficient energy transfer from the grid to the battery. A 6.6 kW on-board charger serves as the critical bridge in this process, converting alternating current (AC) from charging stations or residential outlets into the direct current (DC) required by high-voltage battery packs. Implementing an advanced solution like the one developed by AcePower requires a detailed understanding of both the mechanical integration and the operational parameters that define long-term performance. This guide outlines the essential steps for installing and utilizing high-efficiency charging systems to maximize vehicle uptime and battery health.
Technical Foundation of the 6.6 kW On-Board Charger

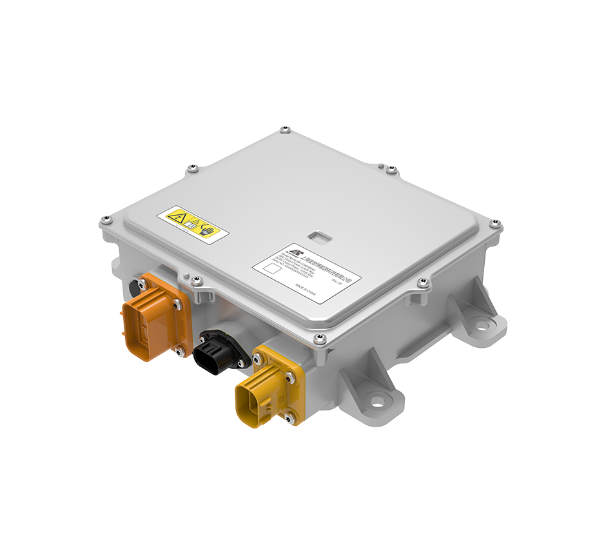

Before beginning the installation process, it is vital to recognize the core specifications of the equipment. The 6.6 kW on-board charger from AcePower is engineered with Silicon Carbide (SiC) technology, which allows for a significantly more compact footprint compared to traditional silicon-based converters. These units typically feature a wide input voltage range of 85 to 265V AC, making them compatible with various global power grids.
Key technical characteristics include:
- Efficiency: Peak efficiency reaches up to 96% at 400V DC full load conditions.
- Compact Design: The system occupies a volume as small as 2.5L and weighs approximately 4.5kg.
- Thermal Management: Most high-performance units utilize liquid cooling to maintain optimal temperatures between -40°C and 85°C.
- Protection Ratings: An IP67 enclosure index ensures the device is protected against dust and water ingress, which is essential for automotive environments.
Mechanical and Electrical Installation Procedures
The physical integration of a 6.6 kW on board charger must prioritize space optimization and thermal dissipation. Given the high power density of the AcePower modules, the following steps are recommended for a professional installation:
- Mounting Orientation: The unit should be secured to a rigid part of the vehicle chassis using the integrated mounting points. Ensuring a flat mating surface helps prevent mechanical stress on the aluminum housing during vehicle vibration.
- Cooling System Connection: For liquid-cooled models, connect the coolant inlet and outlet to the vehicle’s thermal management loop. It is critical to ensure no air bubbles are trapped in the lines, as localized overheating can trigger the derating mechanisms of the 6.6 kW on-board charger.
- High-Voltage Wiring: Use shielded high-voltage cables for the DC output to the battery. Ensure that the connectors are fully seated and locked to maintain the IP67 integrity.
- AC Input Routing: The AC input side requires a robust connection capable of handling up to 32Aac of current. Proper grounding is non-negotiable to ensure the safety of the user and the electrical stability of the vehicle.
- Communication Interface: Integration with the vehicle’s Controller Area Network (CAN) allows the 6.6 kW on board charger to communicate with the Battery Management System (BMS). This ensures that the charging profile matches the battery’s real-time state of charge and temperature.
Operational Guidelines for Maximum Efficiency
Once the hardware is installed, the usage of the 6.6 kW on-board charger should be managed through the vehicle’s software interface. These systems are designed to be “plug-and-play” from a user perspective, but several operational factors influence the charging speed and system longevity.
Digital management through the BMS allows for precise control over the output current. During the initial bulk charging phase, the AcePower unit operates at its rated power to provide the fastest possible energy recovery. As the battery reaches higher states of charge, the system naturally transitions into a constant voltage phase, where the current is gradually reduced.
To maintain peak efficiency, it is important to:
- Monitor Ambient Temperatures: While the 6.6 kW on board charger is rated for extreme environments, charging in extremely high ambient temperatures may cause the system to derate its power output to protect internal components.
- Check Grid Quality: The unit features a power factor above 0.99 and low Total Harmonic Distortion, which helps stabilize the grid connection. However, using high-quality EVSE (Electric Vehicle Supply Equipment) ensures that the input AC voltage remains within the 85–265V range.
- Leverage Bidirectional Features: Some advanced models support V2L (Vehicle-to-Load) discharge modes, allowing the vehicle to power external appliances. When using this feature, ensure the discharge limits set in the vehicle software are followed.
Safety Protocols and Environmental Tolerance
The reliability of a 6.6 kW on-board charger is largely dependent on its ability to withstand harsh automotive conditions. AcePower designs its products to meet rigorous EMI/EMC standards, such as CISPR 25 Class B, to prevent interference with other vehicle electronics like GPS or infotainment systems.
During regular maintenance, the following checks should be performed:
- Inspect the coolant level in the thermal loop to prevent dry-running of the cooling plate.
- Check the high-voltage cable insulation for any signs of wear or thermal stress.
- Ensure that the pressure equalization valve on the charger housing is not obstructed, as this allows the unit to breathe during altitude changes without compromising its IP67 seal.
The 6.6 kW on board charger is designed to operate at altitudes up to 4,000 meters, making it suitable for diverse geographical regions. Its robust internal architecture, often utilizing full glue filling technology, provides additional protection against mechanical shock and humidity.
Optimizing Performance Through Advanced Power Solutions
Effective management of vehicle charging involves more than just the hardware; it requires a synergy between the battery, the thermal system, and the conversion electronics. By selecting a high-specification 6.6 kW on-board charger, manufacturers can reduce the overall weight of the vehicle while improving the total driving range through reduced conversion losses.
The 6.6 kW on board charger reduces switching losses by a significant margin compared to older designs. This means less heat is generated, allowing for smaller radiators and less energy consumption by the cooling pumps. For fleet operators and individual users alike, this efficiency translates directly into lower operational costs and faster turnarounds at charging stations.
As the industry moves toward more integrated “multi-in-one” power electronics, the expertise provided by AcePower ensures that these systems remain reliable over the entire lifespan of the vehicle. By following the prescribed installation and usage guidelines, technicians can ensure that the 6.6 kW on-board charger continues to deliver stable, high-speed charging in any environment.
