Professional stage lasers transform digital commands into captivating aerial displays through a precise, multi-stage process. This intricate operation, especially critical for high-output outdoor stage lights, involves generating, modulating, and steering light with exceptional accuracy. Systems like the Showven Maiman20 exemplify this engineering, ensuring reliability even in demanding environments.
Step 1: Generation and Color Mixing
The process begins inside the laser module. Multiple laser diodes, each emitting a specific primary color—red, green, and blue (RGB)—are activated. In advanced laser stage lighting systems, a full digital driver, such as the RGB+TEC controller in the Maiman20, manages the power to each diode with microsecond precision (as fast as 5μs). This digital control allows for exact intensity adjustment of each colored beam. These individual beams are then merged into a single, coherent white light source, which can be digitally tuned to create any color in the spectrum with high linearity and reliability.
Step 2: Steering and Projection
The unified laser beam is directed toward a pair of rapidly moving mirrors called galvanometers (galvos). One mirror controls the beam’s movement on the X-axis, while the other controls the Y-axis. A digital signal from a lighting console instructs these galvos on exactly how to tilt and pivot at extreme speeds. By manipulating the beam’s path faster than the human eye can follow, the mirrors trace intricate shapes, logos, and animations onto surfaces or into the sky. For outdoor stage lights, this requires powerful laser output to ensure the graphics remain vivid and visible over long distances.
Ensuring a Flawless and Safe Performance

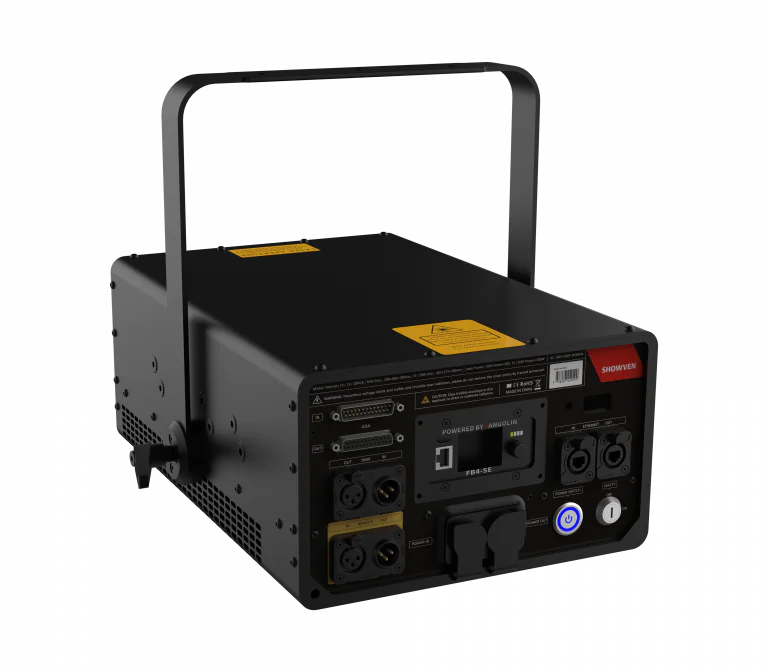

The entire operation is safeguarded by robust protective systems, which are paramount for public events. The Showven Laser Maiman20’s IP65-rated enclosure protects its internal components from dust and moisture, making it a resilient choice for outdoor stage lights. Furthermore, integrated safety features—including a remote E-stop, scan-fail protection, and built-in electronic safeguards for over-current and over-temperature scenarios—continuously monitor the laser stage lighting system. This ensures maximum safety and controllability, allowing creatives to produce stunning visual spectacles with complete confidence.
